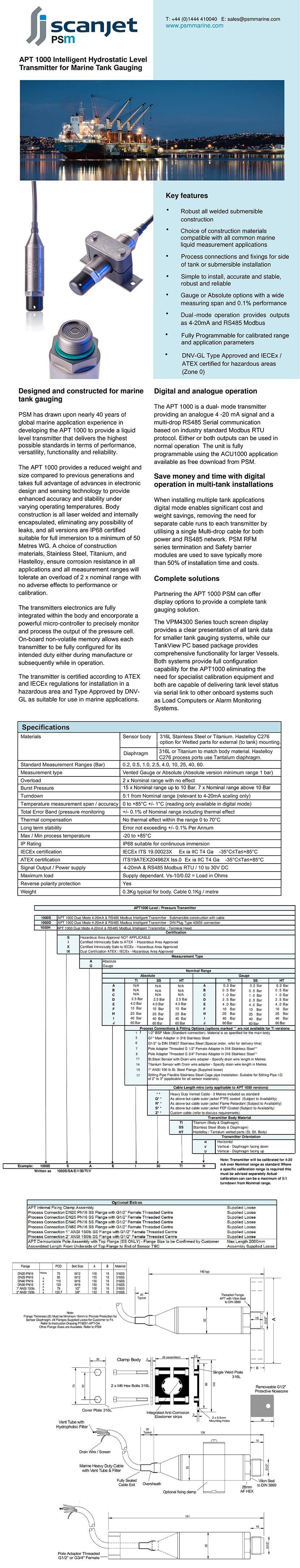

| 智能靜液壓液位變送器 | |||
| 類型: | 壓力式 | 測量對象: | 液體 |
| 測量目標: | 全部 | 信號轉換: | 模擬信號/數字信號 |
| 數值類型: | 絕對值/差值 | 最大量程: | 60Bar |
| 超負荷量程倍數: | 2 | 最小量程: | 0.2Bar |
| 量程定制: | 不可定制 | 量程比: | 5 |
| 性能亮點: | A reduced weight and size; Enhanced accuracy and stability under varying operating temperatures; Robust all welded submersible construction; Simple to install, accurate and stable, robust and reliable ; Fully Programmable for calibrated range and application parameters ; Can be used to provide a complete tank guaging solution; Certification for hazardous Areas (Zone 0) | 微波頻率: | NA |
| 測量間隔: | NA | 歸零間隔: | NA |
| 輸出信號: | 4-20mA/ RS485 Modbus RTU | 脹裂壓力: | 15 x Nominal range up to 10 Bar ; 7 x Nominal range above 10 Bar |
| 精度: | 0.1% | 工作溫度: | -20 ~ +85°C |
| 溫度補償: | 0 ~ 70°C | 本體材質: | 316L Stainless Steel or Titanium |
| 防護等級: | IP68 | 國際防爆認證: | IECEx ITS 19.00023X Ex ia IIC T4 Ga -35℃≤Ta≤+85℃ |
| 歐洲防爆認證: | ITS19ATEX204962X Iss.0 Ex ia IIC T4 Ga -35℃≤Ta≤+85℃ | 供電電壓: | 10 ~ 30V DC |
| 反接保護: | Yes | 變送器方向: | Horizonta ; Vertical - Diaphragm facing down ; Vertical - Diaphragm facing up |

| -供應商聯系方式- | |||||
|
|
公司名稱: | PSM Instrumentation Ltd |
|
聯系人姓名: | Mark Jones |
| 公司地址: | Unit 3 Burrell Road, Haywards Heath, West Sussex, UK. RH16 1TW | 聯系人電話: | +44(0)1444410040 | ||
| 聯系人郵箱: | mark.jones@psmmarine.com | ||||
